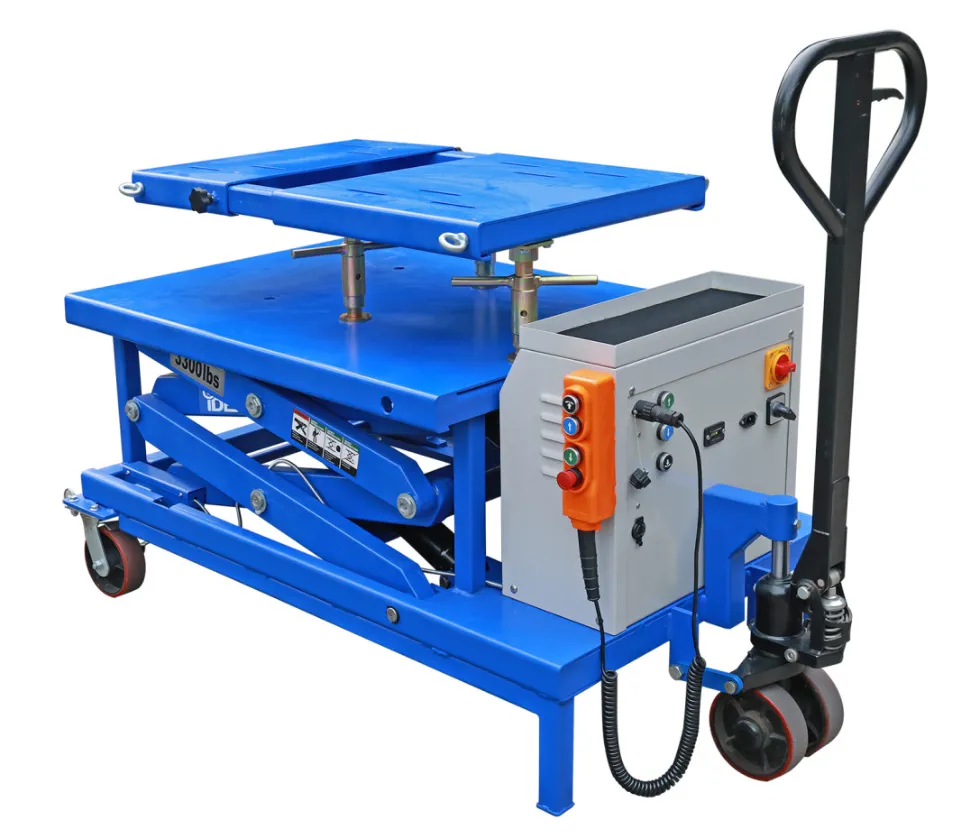

Tuxedo iDeal LT-PT3300DC-X Powertrain Lift Table DC Battery

The iDeal LT-PT3300DC-X is a 3,300 lb portable, high-rise commercial/industrial grade 12VDC battery powered electric-hydraulic lift table, incorporating a multi-adjustable powertrain platform primarily designed to assist with controlled lifting and lowering tasks to safely remove, replace or service heavy vehicle powertrain components such as engines, transmissions, drive-axle and transaxle assemblies, or other similar heavy components. The LT-PT3300DC-X comes standardly equipped with a durable powertrain platform that includes extendable length, tilt and height adjustments, while also incorporating a fully operational remote hand controller and control box panel buttons for dual operational control operations. Also included is a high quality deep-cycle 12VDC sealed battery, integrated battery charger and 12VDC auxiliary outlet port. In addition the iDeal Powertrain 3300 lb lift table comes standard with a pallet jack dolly with poly casters, leg support stands, front locking swivel and directional poly casters, tool tray, double lift scissors, powerful DC electric motor, dual hydraulic cylinders, tie-down anchors, and heavy duty ratchet strap. Optional accessories include a ‘quick mount’ PT support stand kit and 12VDC LED spot light with magnetic base.

Features:

• 3,300 lbs capacity
• Innovative high quality portable scissor lift design
• Efficient and safe method to install or remove heavy vehicle powertrain components ie: transmission, engines or axles
• Dual DC electrical operation using control panel or magnetic hand control buttons for ease of lifting, locking and lowering
• 12VDC battery operation w/integrated 110V battery charger
• HD PT ‘extendable and slotted’ platform w/5.2” adjustment length
• HD jack screws for precision ‘tilt and height’ platform adjustments
• Double scissor HD design w/dual HQ hydraulic cylinders
• Integrated utility/tool tray and sub-platform storage area
• Portability ease with pallet jack operation w/6” poly wheels
• Durable ‘directional and locking’ 6” front poly swivel casters
• PT platform size 23.6”w x 31.5”h x 36.7”l
• 3 locking height positions
• Overall size 65.2”L x 33.5”W
• Includes 12VDC battery, 4 each tie-down ring eyelets and HD ratchet strap
• Durable powder-coat finish

Specifications:

• Lift Model | LT-PT3300DC-X
• Capacity | 3,300 lbs
• Overall Length | 65.2”
• Overall Width | 33.5”
• Max PTP Platform Height | 72”
• Min PT Platform Height | 35”
• Dolly Hand Bar Height | 47.2”
• PT Platform Adj. Size | 31.5” – 36.7”L x 23.6”W
• PT Platform Adj. Tilt Angle ( /-) | 6° - 8°
• PT Platform Locking Heights | 49”, 61”, 68”
• Lifting/Lowering Rate | 20S / 22S
• Power Supply (Battery Charger) | 110VAC – 1.5A – 1PH
• DC Power Unit | 12VDC – 120A – 2.15HP
• Ship Weight | 908 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
